DJI ​Zenmuse L1 - LiDAR Sensor

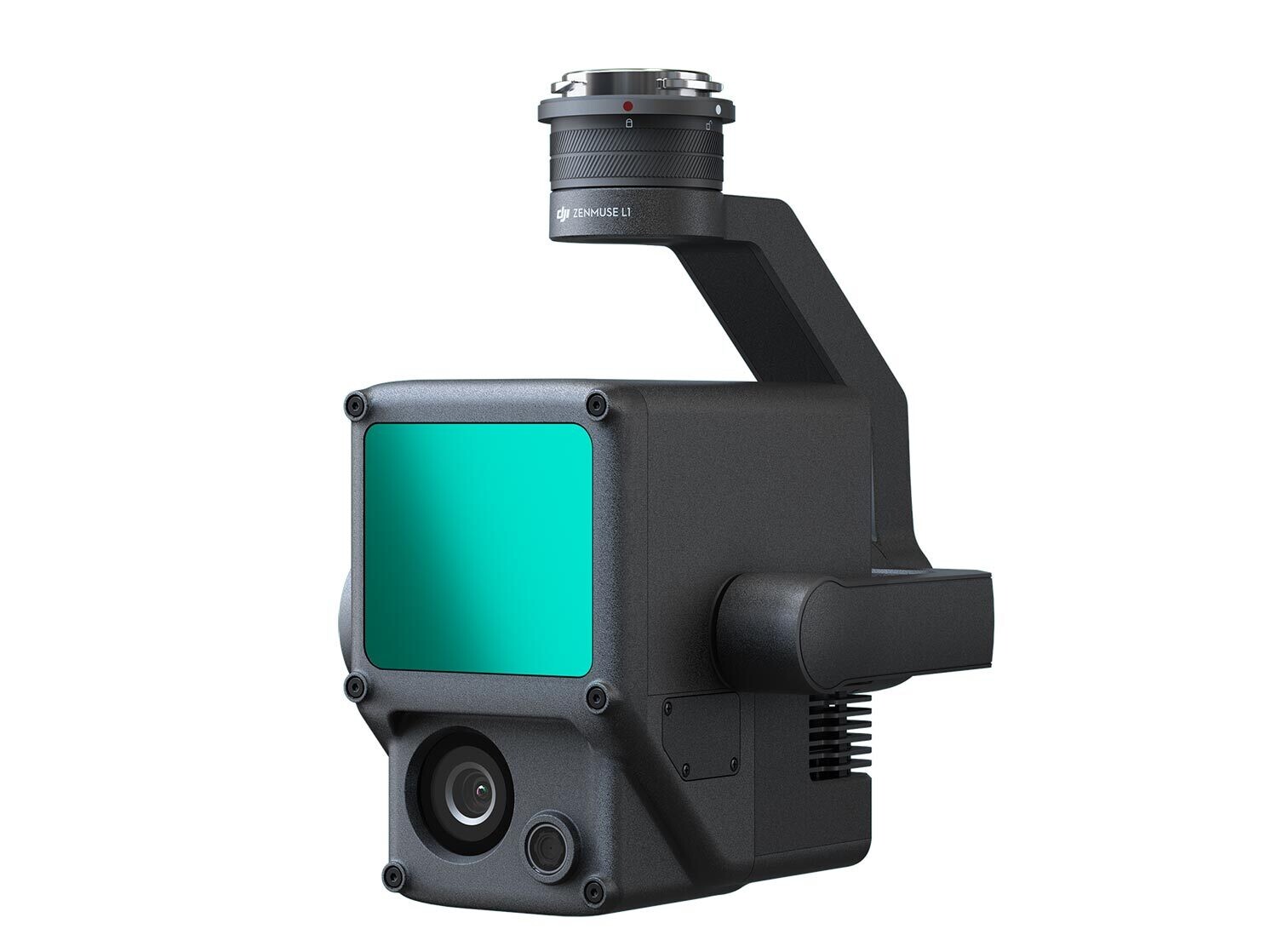

DJI Zenmuse L1: LiDAR Sensor

A Lidar + RGB Solution for Aerial Surveying

Key Features

• Integrates a Lidar Module, an RGB Camera and High-Accuracy IMU
• 2km² Covered in a Single Flight
• IP54 Ingress Protection Level
• 5cm Vertical Accuracy & 10cm Horizontal Accuracy
• 450m Detection Range

Description

Instant Clarity. Superior Accuracy .

The Zenmuse L1 is a Lidar and RGB solution for aerial surveying. It combines a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilised gimbal.

When paired with the Matrice 300 RTK and DJI Terra, the L1 offers a complete solution. It provides real-time 3D data, effectively capturing the details of complex structures and delivering highly accurate reconstructed models.

Enjoy high efficiency with the Zenmuse L1, covering up to 2km² in a single flight. Moreover, enjoy unparalleled accuracy thanks to the IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data. The L1 can achieve a vertical accuracy of 5cm and a horizontal accuracy of 10cm.

An IP54 Ingress Protection Level allows operators to operate the L1 in fog or rain. In addition, the Lidar module’s active scanning method lets you fly at night.

Potential applications using the Zenmuse L1 include topographic mapping, AEC and surveying, emergency response, law enforcement, energy and infrastructure as well as agriculture and forestry management.

Specifications

General

Lidar

RGB Mapping Camera

Post-Processing Software

What's in the box?

• 1 x DJI Zenmuse L1
